24X32 inch Heavy Duty Flat Press Machine

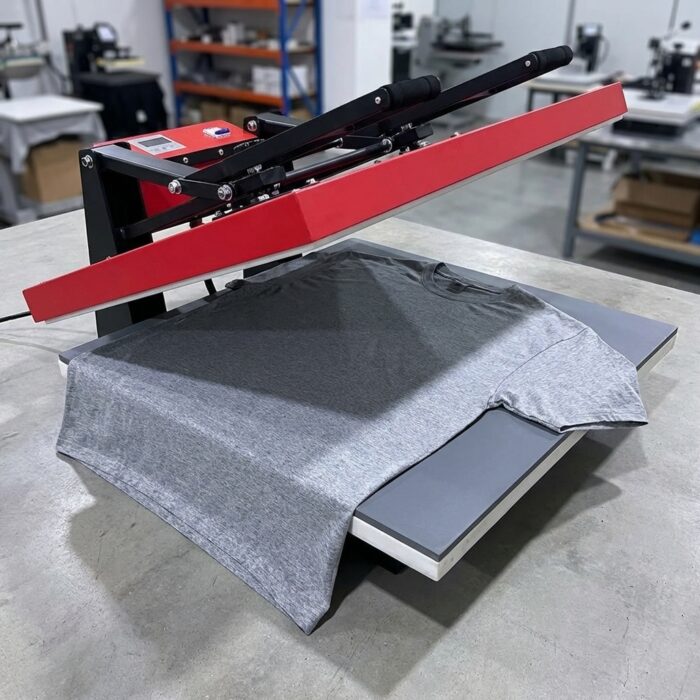

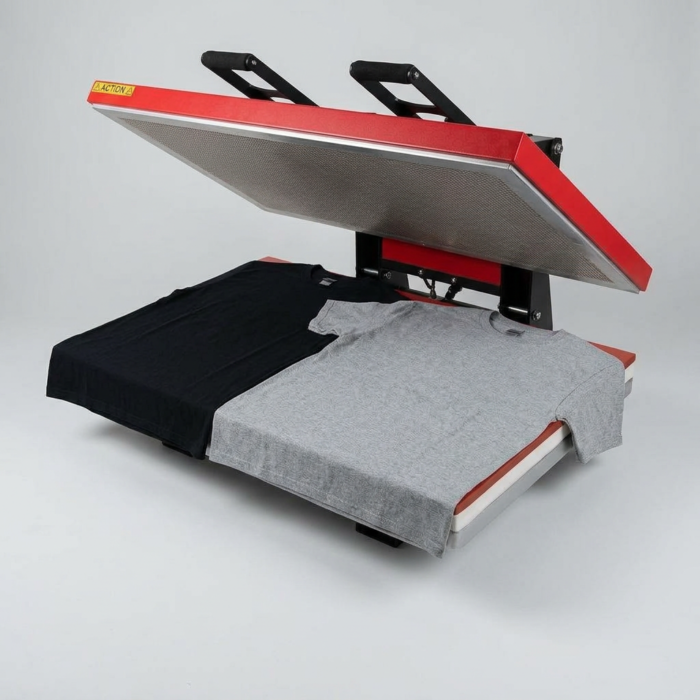

The 24×32 Inch Heavy Duty Flat Press Machine is the definitive large-format heat press for serious production businesses — a machine built not for occasional use but for daily, high-volume commercial operation where surface area, power, and consistency are non-negotiable. The 24×32 inch (61×81 cm) pressing surface is the defining advantage of this machine. It is large enough to accommodate a full adult XXL garment without any repositioning, press two standard T-shirts simultaneously in a single cycle, handle oversized hoodies, large tote bags, full-width banner transfers, bed linen panels, and large-format sublimation blanks — making it a machine that expands what is possible in a single press cycle rather than simply replicating what a smaller press can already do.

The platen is constructed from aviation-grade die-cast aluminium — the same material specification used in precision engineering and aerospace component manufacturing — with ultra-precision wire tube heating elements die-cast directly into the platen body during manufacturing. This embedded element construction is what gives the 24×32 Inch Heavy Duty Flat Press Machine its exceptionally even heat distribution across the full 24×32 inch surface, delivering temperature consistency with a variance of less than ±5°C from edge to edge — a specification that most presses of this size cannot match. The platen surface is coated with a PTFE Teflon anti-adhesion layer that prevents ink, adhesive, vinyl, and transfer paper residue from bonding to the platen, protects substrates from direct metal contact during pressing, and makes cleaning between jobs effortless. For the best results on every press cycle, always place a Teflon Sheet for Heat Press between the platen and your transfer — it provides an additional protective buffer and helps achieve the most consistent, residue-free transfers on every substrate type.

Temperature and time are managed through a full-colour digital touch screen control panel that displays the set and actual platen temperature simultaneously in real time — so operators always know the true platen temperature at any moment during a production run, not just the target. Temperature is adjustable from ambient up to 232°C (450°F) and time is configurable from 0 to 999 seconds with an audible completion alert and a built-in press count display that tracks total cycles completed in a session — a practical production monitoring feature that helps businesses track output, schedule maintenance intervals, and manage consumable replacements efficiently. The dual pressure adjustment knobs — positioned at both the left and right sides of the upper arm — allow independent calibration of the platen pressure across its full width, ensuring perfectly even clamping force from edge to edge even when pressing materials of varying thickness or when working close to one side of the platen. Temperature and time settings can be toggled between Celsius and Fahrenheit at the touch of a button, making the machine suitable for both the Indian and international markets.

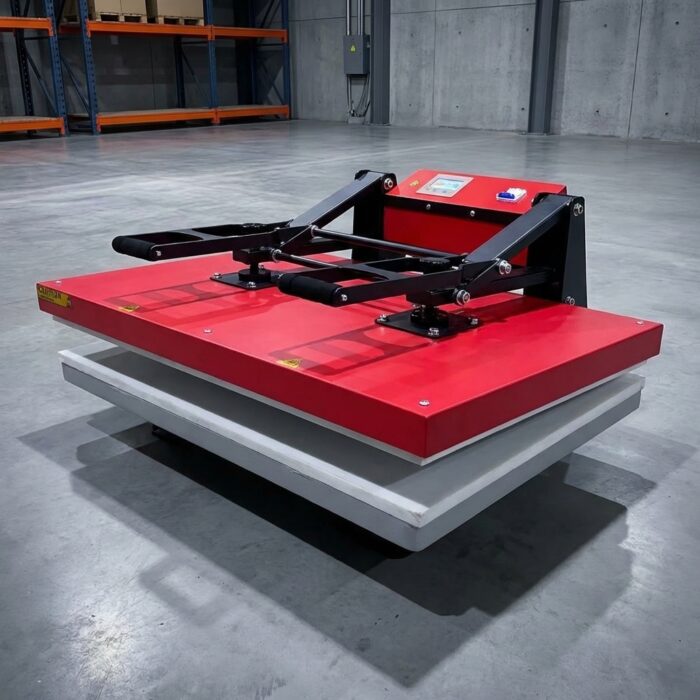

The structural frame is built from heavy-gauge high-strength steel with reinforced corner brackets and a precision-machined clamshell arm pivot — a construction approach that delivers the mechanical rigidity required for consistent, repeatable pressing force across thousands of daily press cycles without fatigue, deflection, or alignment drift. The machine operates at 4,500W, reaching working temperature from cold start in under 8 minutes, and features a built-in overheat protection system with automatic shut-off that cuts power to the heating element if the platen temperature exceeds safe operating parameters — protecting the machine, the operator, and the substrate from thermal overrun events during extended unattended operation. The silicone sponge base pad on the lower platen provides a compressible, even surface that accommodates materials of varying thicknesses while maintaining consistent full-surface contact, and is fully replaceable for ongoing maintenance.

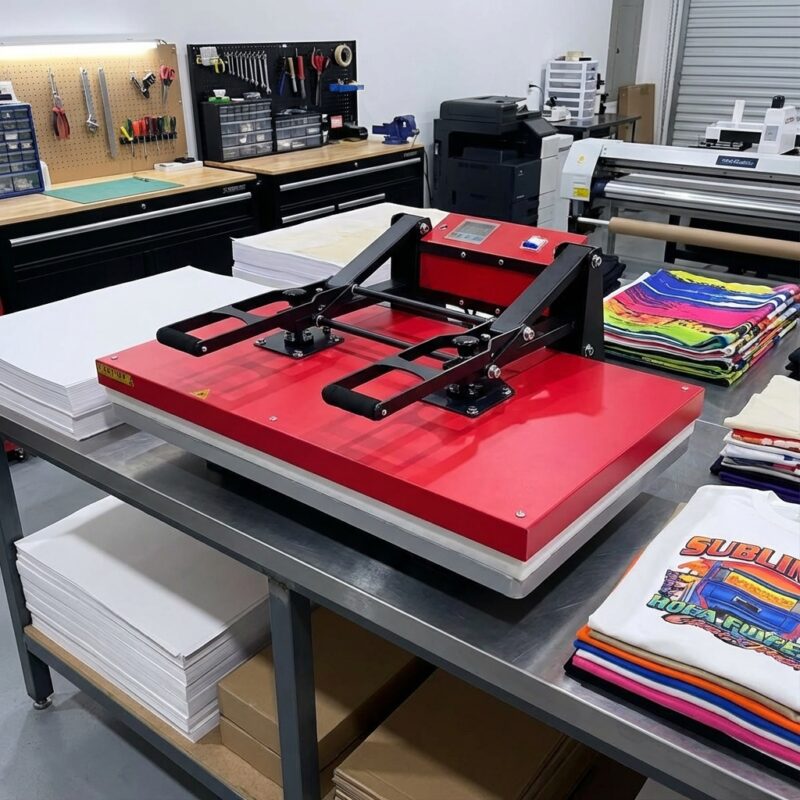

This machine handles the full range of flat heat transfer applications at a scale that smaller presses simply cannot match — sublimation printing on polyester garments and coated hard substrates, heat transfer vinyl (HTV) and specialty vinyl, DTF (direct-to-film) transfers, screen-printed transfers, rhinestone and hotfix applications, and large-format banner and flag printing. For sublimation work, pair it with Both Side A4 Sublimation Paper for superior transfer rates and vibrant, accurate colour output on every substrate. It is equally effective on hard flat substrates including Small Blank Mouse Pads, aluminium metal panels, ceramic tiles, and polymer plates — making it a highly versatile production tool across multiple product categories. For businesses operating a multi-machine production floor, the 24×32 Inch Heavy Duty Flat Press Machine pairs powerfully with the 15×15 Double Bed Automatic Machine — while this machine handles large-format, oversized, and batch flat pressing, the double bed automatic machine manages continuous automated standard-format garment output simultaneously — together covering the full spectrum of flat substrate production volumes without any bottlenecks.

The 24×32 Inch Heavy Duty Flat Press Machine weighs 150 kg and measures 101 × 143 × 81 cm, with a total carton CBM of 1.168 m³ and a volumetric weight of 233.7 kg. Available as a single unit.
